What is a power transformer?

Power transformers are electrical instruments used in transmitting electrical power from one circuit to another without changing the frequency.

High-voltage transformer,use Japanese Toshiba analysis software and our company special calculation and validation procedures to the transformer core,winding, structural components, lead, fuel tanks, etc. Parts of the optimal design and carry on the omni- directional validation, ensure product performance.

Superior process equipment,elaborate material selection and efficient manufacturing,resulting in a transformer with a small volume, light weight,low loss,low-partial-discharge, low noise characteristics,the product quality is superior, energy conservation and environmental protection, easy installation and maintenance, reliable operation and effectively reduced products running costs.

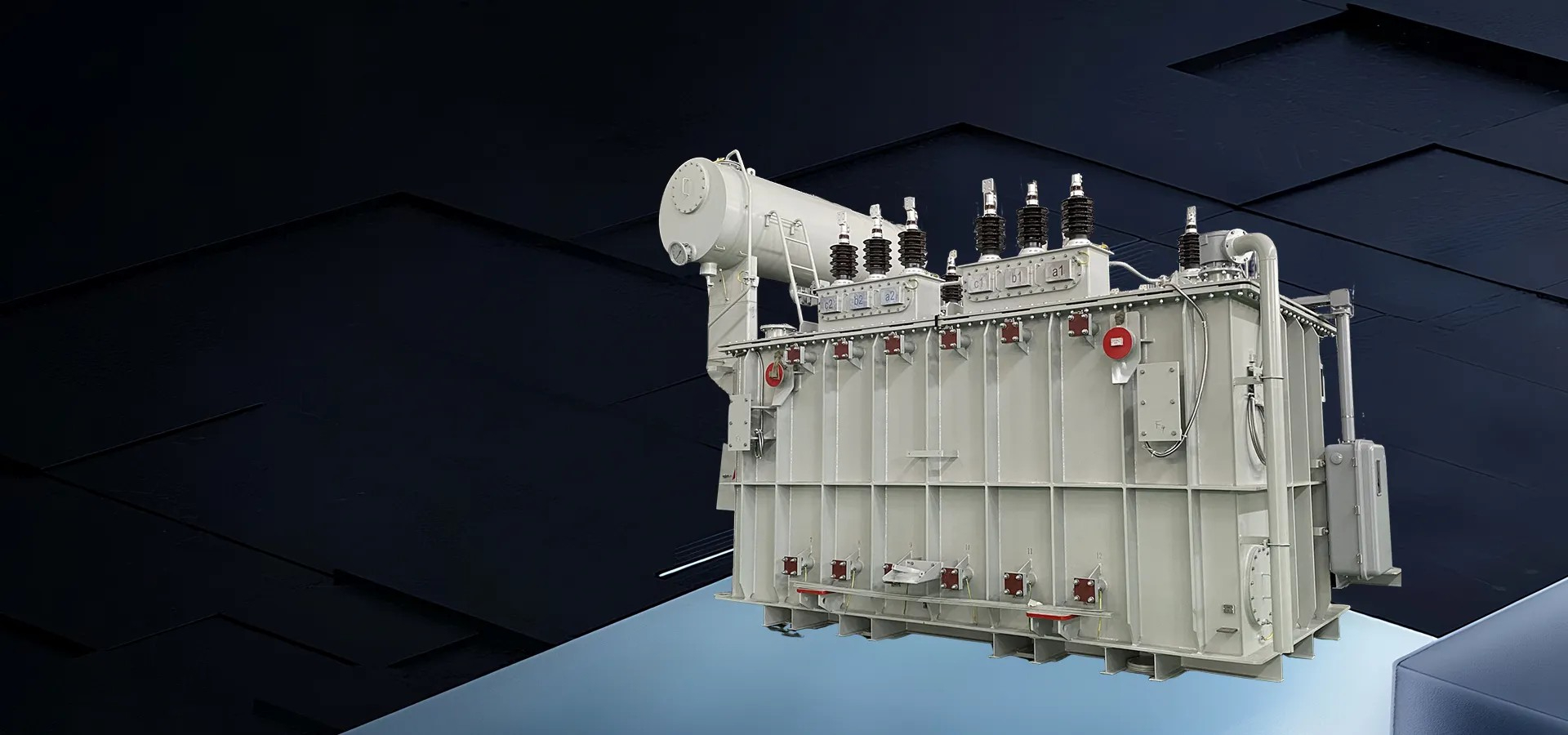

Our product SSZ20-240000/220 has passed the short-circuit withstand capacity and all routine type tests of the National Transformer Quality Supervision and Inspection Center.

This product is stable,reliable,economical and environmentally friendly, and is suitable for power plants, substations, large industrial and mining petrochemical enterprises,etc.

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria. We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.

Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

Products Parameters

Rated capacity(kVA)	Rated voltage and tapping range			Vector group	No load current(%)	Impedan cevoltage(%)	No load Losses(kW)	On load Losses(kW)
	HV	Tapping range	LV
6300	110 1511 21	±2x2.5%	6.3 6.6 10.5	YNd11	0.5	10.5	4.1	32
8000					0.5		4.9	38
10000					0.46		5.8	45
12500					0.46		6.8	53
16000					0.43		8.3	65.7
20000					0.43		9.7	79
25000					0.4		11.4	94
31500					0.38		13.5	111
40000					0.36		16.2	133
50000					0.34		19.4	158
63000					0.3		22.9	187
75000			13.8 15.75 18 21		0.26	12-14	26.0	212
90000					0.24		29.9	245
120000					0.22		37.3	303
150000					0.19		44.1	359
180000					0.16		49.5	411

Products Advantages

The JSYW Power Transformer product is a premium-grade power transformer that provides reliable service to customers. The transformer is manufactured using high-quality raw material procured from the most reputed vendors in the industry.

Several features like easy installation and low maintenance cost ensure optimum performance under unfavorable weather conditions for long durations.

Applications

Utilities today seek to create and connect new sources of power generation to meet growing global demand, while also managing grid reliability, costs and regulatory factors.
